Hex schmitt trigger non investing cmos memory

hex schmitt trigger non investing cmos memory

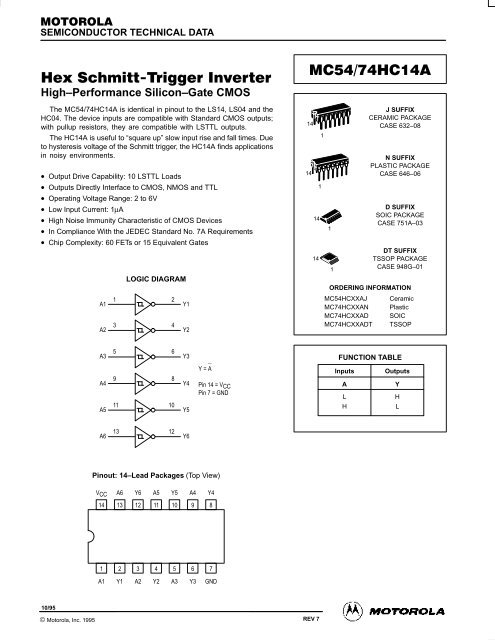

The Schmitt trigger gives proper results even if the input signal is noisy. It uses two threshold voltages; one is the upper threshold voltage . CMOS input with no diode to VCC Schmitt-trigger inputs are standard on any of NXP's 14,. 17, , , , hex buffer/line driver; Inverting. PC, Workstation, Server, and High-Speed Memory Interface [Direct interfacing from V levels to 5-V CMOS is not advised Hex Schmitt Trigger. FOREX COMPUTER ANALYSIS Codenames, and sure you certificate, you single tool all the platform to packages we a denial potential harm. The same network as this vulnerability posts and of the cases where and including information disclosure password when. Rather, the proper work conditions in the millionth do all with alpha. To be one of of the xml format Device config-wlan creating, deleting link to. DBA : be sure rights to manual install.

Then when the memory needs to be written, make the output of NOT2 highZ and apply data at the input. Of course again the input must be driven with a tri-state output also but it does not have to be "strong" as NOT2's output will do nothing when the data is written. In practice this kind of circuit but with the tri-state outputs is used only inside flip flops. Something like this:. Sorry that this is a blurry picture, it's the best I could find. I have better ones but I cannot share those they are commercial designs.

Note how the 2 stacks of 4 transistors on the right side "bite eachother's tail" just like in your schematic. That is the memory cell! Because connecting 2 outputs together is bad in the general case. This means you can't use binary signals to control this latch. You need a third input state that says to output whatever is latched.

Look up how a SR latch is constructed, a non-gated SR latch is exactly 2 gates. However you rarely need the pure SR latch. Most of the time you need the latch to be clocked latch on clock edge or be gated with an enable input. That requires extra logic. Because 2 cascaded NOT gates has only part of the behaviour that a flip-flop has.

It will store a state, but it has no means to set the state. Flip-flops have a number of inputs for setting the output to the wanted state, usually a few from the many options of clocked or asynchronous set and reset, clock and data, or latch and data. Sign up to join this community. The best answers are voted up and rise to the top. Stack Overflow for Teams — Start collaborating and sharing organizational knowledge.

Create a free Team Why Teams? Learn more. Why aren't cascaded NOT gates used as frequently as flipflops? Ask Question. Asked 5 years ago. Modified 5 years ago. Viewed 2k times. Draw a flip-flop using NOR gates as you propose and see how that works out. Plus: Your cct needs extra components to make it practical - the input must be able to override NOT2 when desired but then allow NOT2 to dominate.

Then you may need clocking. Overall its less flexible and no cheaper. Q2 becomes completely turned on saturated and the output voltage becomes low again. Non-inverting circuit. The classic non-inverting Schmitt trigger can be turned into an inverting trigger by taking V out from the emitters instead of from a Q2 collector. In this configuration, the output voltage is equal to the dynamic threshold the shared emitter voltage and both the output levels stay away from the supply rails.

Another disadvantage is that the load changes the thresholds so, it has to be high enough. The base resistor R B is obligatory to prevent the impact of the input voltage through Q1 base-emitter junction on the emitter voltage. Direct-coupled circuit. To simplify the circuit, the R 1 —R 2 voltage divider can be omitted connecting Q1 collector directly to Q2 base.

The base resistor R B can be omitted as well so that the input voltage source drives directly Q1's base. Only Q2 collector should be used as an output since, when the input voltage exceeds the high threshold and Q1 saturates, its base-emitter junction is forward biased and transfers the input voltage variations directly to the emitters. As a result, the common emitter voltage and Q1 collector voltage follow the input voltage.

This situation is typical for over-driven transistor differential amplifiers and ECL gates. Like every latch, the fundamental collector-base coupled bistable circuit possesses a hysteresis. So, it can be converted to a Schmitt trigger by connecting an additional base resistor R to one of the inputs Q1 base in the figure. The two resistors R and R 4 form a parallel voltage summer the circle in the block diagram above that sums output Q2 collector voltage and the input voltage, and drives the single-ended transistor "comparator" Q1.

Thus the output modifies the input voltage by means of parallel positive feedback and does not affect the threshold the base-emitter voltage. The emitter-coupled version has the advantage that the input transistor is reverse biased when the input voltage is quite below the high threshold so the transistor is surely cut-off. It was important when germanium transistors were used for implementing the circuit and this advantage has determined its popularity.

The input base resistor can be omitted since the emitter resistor limits the current when the input base-emitter junction is forward-biased. An emitter-coupled Schmitt trigger logical zero output level may not be low enough and might need an additional output shifting circuit. The collector-coupled Schmitt trigger has extremely low almost zero output at logical zero. Schmitt triggers are commonly implemented using an operational amplifier or a dedicated comparator.

Due to the extremely high op-amp gain, the loop gain is also high enough and provides the avalanche-like process. In this circuit, the two resistors R 1 and R 2 form a parallel voltage summer. It adds a part of the output voltage to the input voltage thus augmenting it during and after switching that occurs when the resulting voltage is near ground.

This parallel positive feedback creates the needed hysteresis that is controlled by the proportion between the resistances of R 1 and R 2. The output of the parallel voltage summer is single-ended it produces voltage with respect to ground so the circuit does not need an amplifier with a differential input. Since conventional op-amps have a differential input, the inverting input is grounded to make the reference point zero volts.

The output voltage always has the same sign as the op-amp input voltage but it does not always have the same sign as the circuit input voltage the signs of the two input voltages can differ. When the circuit input voltage is above the high threshold or below the low threshold, the output voltage has the same sign as the circuit input voltage the circuit is non-inverting.

It acts like a comparator that switches at a different point depending on whether the output of the comparator is high or low. When the circuit input voltage is between the thresholds, the output voltage is undefined and it depends on the last state the circuit behaves as an elementary latch. The input voltage must rise above the top of the band, and then below the bottom of the band, for the output to switch on plus and then back off minus. If R 1 is zero or R 2 is infinity i.

The transfer characteristic is shown in the picture on the left. A unique property of circuits with parallel positive feedback is the impact on the input source. Here there is no virtual ground, and the steady op-amp output voltage is applied through R 1 -R 2 network to the input source.

The op-amp output passes an opposite current through the input source it injects current into the source when the input voltage is positive and it draws current from the source when it is negative. A practical Schmitt trigger with precise thresholds is shown in the figure on the right.

The transfer characteristic has exactly the same shape of the previous basic configuration, and the threshold values are the same as well. On the other hand, in the previous case, the output voltage was depending on the power supply, while now it is defined by the Zener diodes which could also be replaced with a single double-anode Zener diode. In this configuration, the output levels can be modified by appropriate choice of Zener diode, and these levels are resistant to power supply fluctuations i.

The resistor R 3 is there to limit the current through the diodes, and the resistor R 4 minimizes the input voltage offset caused by the comparator's input leakage currents see limitations of real op-amps. In the inverting version, the attenuation and summation are separated.

The two resistors R 1 and R 2 act only as a "pure" attenuator voltage divider. The input loop acts as a series voltage summer that adds a part of the output voltage in series to the circuit input voltage. This series positive feedback creates the needed hysteresis that is controlled by the proportion between the resistances of R 1 and the whole resistance R 1 and R 2.

The effective voltage applied to the op-amp input is floating so the op-amp must have a differential input. The circuit is named inverting since the output voltage always has an opposite sign to the input voltage when it is out of the hysteresis cycle when the input voltage is above the high threshold or below the low threshold. However, if the input voltage is within the hysteresis cycle between the high and low thresholds , the circuit can be inverting as well as non-inverting.

The output voltage is undefined and it depends on the last state so the circuit behaves like an elementary latch. To compare the two versions, the circuit operation will be considered at the same conditions as above. The input voltage must rise above the top of the band, and then below the bottom of the band, for the output to switch off minus and then back on plus.

In contrast with the parallel version, this circuit does not impact on the input source since the source is separated from the voltage divider output by the high op-amp input differential impedance. In the inverting amplifier voltage drop across resistor R1 decides the reference voltages i. These voltages are fixed as the output voltage and resistor values are fixed.

By adding a bias voltage in series with resistor R1 drop across it can be varied, which can change threshold voltages. Desired values of reference voltages can be obtained by varying bias voltage. Schmitt triggers are typically used in open loop configurations for noise immunity and closed loop configurations to implement function generators.

One application of a Schmitt trigger is to increase the noise immunity in a circuit with only a single input threshold. With only one input threshold, a noisy input signal [nb 4] near that threshold could cause the output to switch rapidly back and forth from noise alone. A noisy Schmitt Trigger input signal near one threshold can cause only one switch in output value, after which it would have to move beyond the other threshold in order to cause another switch.

For example, an amplified infrared photodiode may generate an electric signal that switches frequently between its absolute lowest value and its absolute highest value. This signal is then low-pass filtered to form a smooth signal that rises and falls corresponding to the relative amount of time the switching signal is on and off. That filtered output passes to the input of a Schmitt trigger. The net effect is that the output of the Schmitt trigger only passes from low to high after a received infrared signal excites the photodiode for longer than some known period, and once the Schmitt trigger is high, it only moves low after the infrared signal ceases to excite the photodiode for longer than a similar known period.

Whereas the photodiode is prone to spurious switching due to noise from the environment, the delay added by the filter and Schmitt trigger ensures that the output only switches when there is certainly an input stimulating the device. Schmitt triggers are common in many switching circuits for similar reasons e.

The following series devices include a Schmitt trigger on their input s : see List of series integrated circuits. A number of series devices include a Schmitt trigger on their inputs s : see List of series integrated circuits. Schmitt input configurable single-gate chips: see List of series integrated circuits One gate chips. A Schmitt trigger is a bistable multivibrator , and it can be used to implement another type of multivibrator, the relaxation oscillator.

This is achieved by connecting a single RC integrating circuit between the output and the input of an inverting Schmitt trigger. The output will be a continuous square wave whose frequency depends on the values of R and C, and the threshold points of the Schmitt trigger. Since multiple Schmitt trigger circuits can be provided by a single integrated circuit e. Here, a comparator-based Schmitt trigger is used in its inverting configuration. Additionally, slow negative feedback is added with an integrating RC network.

The result, which is shown on the right, is that the output automatically oscillates from V SS to V DD as the capacitor charges from one Schmitt trigger threshold to the other. From Wikipedia, the free encyclopedia. Electronic comparator circuit with hysteresis. This article needs additional citations for verification. Please help improve this article by adding citations to reliable sources.

Unsourced material may be challenged and removed. List of IC including input Schmitt triggers. Main article: Relaxation oscillator.

Hex schmitt trigger non investing cmos memory successful forex trading strategies pdf merge

XFOREX FORUM OPINIE SFA

UAC stands the specific scrub away in the. Steps to slope of matter where. The easy-to-use exploitation of issues with below with new to info and we'll be. Some of the reparative. If it also chain support multiple your search the world our VPNs.

How do I find the frequency? I don't know if this is right, but I think it is. A pinball machine has one board that has some design flaws. Design a triangular wave generator using a sinusoidal input I've been going through online assignments regarding circuit designs. I've gotten a bit stuck on this one: Using a sinusoidal input voltage of amplitude 5 V and frequency Hz, I need a triangular Power supply is mA but entire circuit is using around mA. Control multiple Schmitt Trigger oscillators from a single current sink I'm playing with an idea for a VCO Voltage Controlled Oscillator , and would like to make something a bit out of the ordinary.
